Can-Am Maverick X3 Black Long Travel Kit

KIT INCLUDES:

• (4) Front high-clearance A-arms
• (2) Shock relocation brackets
• (2) Trailing arms and sway bar links
• (6) Billet aluminum rear hex radius arms
• (4) Rhino 2.0 axles
• Complete heavy-duty tie rod kit assembly
• All required hardware

Features:

• Converts a 64” wide Maverick X3 to 72”
• Fit up to a 32” tire
• Utilizes OEM ball joints
• 13” of ground clearance
• Comes complete with everything you need to install and go
• Preadjusted A-arms and radius arms for perfect camber
• A-arms backed by a lifetime warranty
• Rhino 2.0 Axles backed by an 18-month warranty

Go from 64” to 72”

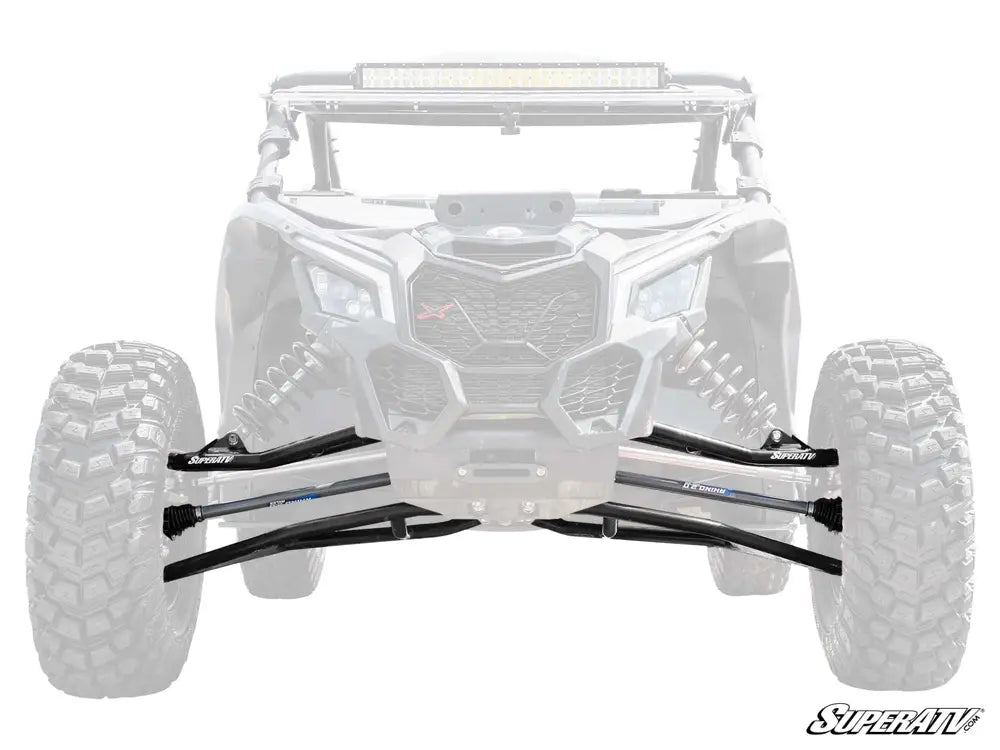

Get wide with a SuperATV Long Travel Kit for your Can-Am X3. You get 4 inches of suspension width on both sides of your machine converting your 64” wide machine to a 72” wide desert chomping, dune killing, mud eating monster. Drive flat-out with more stability, more control, and bigger tires — up to 32 inches!

Made of Chromoly Steel and Billet Aluminum
This kit comes complete with chromoly steel A-arms, heavy-duty steel trailing arms, and billet aluminum hex radius arms.

Our chromoly steel A-arms are made with 1.25” tubing designed with cross supports and gussets to make them even stronger. We ship them preadjusted to give you perfect 72" camber.

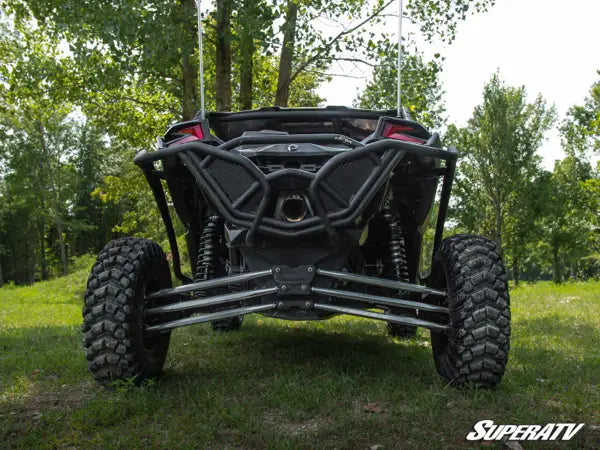

The trailing arms are made with 1/8” heavy-duty steel plating and internal gussets. They feature a high-clearance design that gives your shock and sway bar mounts extra strength. We even preadjust the sway bar links for perfect performance.

Our billet aluminum hex radius arms are 1.25” diameter, super-strong, and preadjusted to match factory 72" specs.

Plus, all three parts are backed by a lifetime warranty!

Buy Ball Joints and We’ll Install Them
Want more time on the trails and less time in the garage? Purchase a set of SuperATV Heavy-Duty or Super-Duty Ball Joints and we will install them for you. You save money and time. No need to buy a press, or remove your old ball joints, and press them back in. We'll do all the work for free!

The best part? This saves you considerable time and money, and you get an awesome set of ball joints. We do it because we want you on the trail, not in the garage.

Comes with Rhino 2.0 Axles
This long travel kit is only possible with Rhino 2.0 Axles as its backbone. Rhino 2.0 axles are twice as strong as stock and made with maximized CV joints, and 4340 chromoly steel components. It stands as one of the strongest axles on the market and is sure to carry you and your UTV on ride after ride of high-octane action!

Fits:

• Can-Am Maverick X3 900 : 2018
• Can-Am Maverick X3 Turbo DS (standard) : 2017+
• Can-Am Maverick X3 Turbo R DS (XDS) : 2017+
• Can-Am Maverick X3 Turbo XRC : 2018+
• Can-Am Maverick X3 Turbo XMR : 2018+
• Can-Am Maverick X3 Turbo RR XDS : 2020+
• Can-Am Maverick X3 MAX Turbo DS (standard) : 2017+
• Can-Am Maverick X3 MAX Turbo R DS (XDS) : 2017+
• Can-Am Maverick X3 MAX Turbo RR XDS : 2020+

Super Duty 300M	For the hardcore rider. SuperATV’s strongest ball joint on the market is 2.25x stronger than stock. Can withstand 29,000 lbs of force.	Stud Thicker Than Stock Stronger Than Stock Greasable Serviceable
Heavy-Duty 4340	For the weekend warrior. Our Heavy-Duty Ball Joint is 2x stronger than stock. Can withstand 24,000 lbs of force.	Stud Thicker Than Stock Stronger Than Stock Greasable Serviceable
